Shapes¶

Shape¶

class glc.shapes.Shape(*args, **kwargs)¶

Represents a drawable shape.

Do not instantiate this. Use one of its subclasses instead.

The subclasses should mostly only have to define a draw method, which takes in the context, and t/current time offset.

A lot of the properties passed in can be lists/tuples with two or more values, which will animate from one to the other. Depending on the amount of values (and the property itself) there will be no interpolation, just immediate change from one value to another.

They can also be callables, which should take in a time t and return a single value of the type it expects; so a Color for fills, etc.

The properties listed here are common to all shapes, but some do not work, as it wouldn’t make much sense.

speed_mult¶

float

Multiplier for the time t applied to this shape.

phase¶

float

The “local offset” for the time t applied to this shape.

translation_x¶

float

The horizontal offset for the position of the shape.

translation_y¶

float

The vertical offset for the position of the shape.

line_width¶

float

The width of the outlines for the shape.

line_cap¶: int

line_join¶: int

line_dash¶: iterable of floats

miter_limit¶: float

shake¶

float

How much the shape should shake.

fill¶

Color

Color the fill of this shape. Can also be a value like None or False to indicate that no filling should be done.

stroke¶

Color

Color the outline of this shape. Can also be a value like None or False to indicate that no stroking should be done.

ease¶

callable or string

Either a string, which denotes which easing function to pick from the defaults, or a callable, which should take in a time t and return a single value. By default it inherits this attribute from the Animation that contains it.

loop¶

bool

Whether this shape should bounce back to its initial properties. By default it inherits this attribute from the Animation that contains it.

parent¶

Shape

Specifies the parent for this shape. The position of it becomes relative to its parent, as is the rotation. Usually is None.

add(item)¶

Adds a child shape to this shape’s list of children.

Shouldn’t be called normally, as this is called automatically when you set a shape as a parent of another, for example:

circle_a = render_list.circle(x=100, y=100, radius=50)
render_list.circle(x=100, y=0, radius=50, parent=circle_a)

Parameters:	item (`Shape`) – The shape to add as a child of this one.
Returns:	item – The added child.
Return type:	`Shape`

set_prop(**kwargs)¶

Sets properties for this shape.

Returns:	self – For method chaining.
Return type:	`Shape`

set_ease(ease='sine')¶

Sets the easing function for this shape.

Parameters:	ease (callable or str) – Either a string, which denotes which easing function to pick from the defaults, or a callable, which should take in a time `t` and return a single value. Defaults to `"sine"`.
Returns:	self – For method chaining.
Return type:	`Shape`

set_loop(loop=True)¶

Sets whether this shape should loop or not.

Parameters:	loop (bool) – Whether this shape should bounce back to its initial properties. Defaults to `True`.
Returns:	self – For method chaining.
Return type:	`Shape`

Container¶

class glc.shapes.Container(*args, **kwargs)¶

This is an empty shape, meant to have shapes added to.

The container can be rotated, translated and scaled, with all of its children being affected.

Create it using:

my_container = render_list.container(x=100, y=100, rotation=45, scale_x=2, scale_y=1)
# then add shapes to it
render_list.circle(x=0, y=0, radius=100, parent=my_container)
render_list.rect(x=0, y=0, w=50, h=50, parent=my_container)

x¶

float

Horizontal position of the container.

y¶

float

Vertical position of the container.

rotation¶

float

Angle of the container, in degrees.

scale_x¶

float

Horizontal scale factor of the container.

scale_y¶

float

Vertical scale factor of the container.

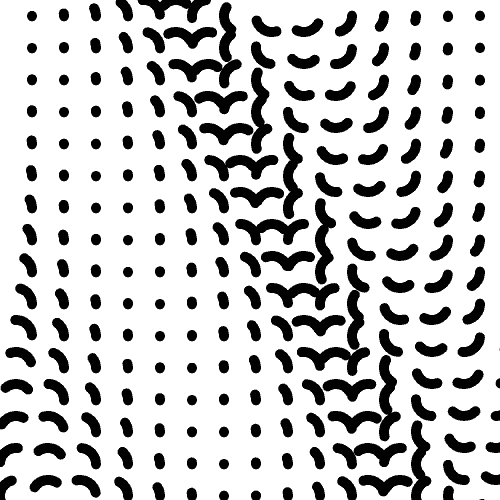

Arc Segment¶

from glc import Gif
from math import pi

with Gif("arc_segment_example.gif", color_count=4) as a:
    l = a.render_list
    r = a.w // 30
    for x in range(r, a.w, r * 2):
        for y in range(r, a.h, r * 2):
            l.arcseg(
                x=x,
                y=y,
                radius=r,
                start=0,
                end=360,
                arc=90,
                line_width=10,
                phase=(x * a.w + y) * pi * 0.03
            )

class glc.shapes.ArcSegment(*args, **kwargs)¶

Draws a portion of an arc around a (x, y) point with a radius and start/end angles.

The drawn segment will animate from the start angle to the end angle during the animation (and back to the start angle if the loop attribute on the animation is True).

Create it using:

render_list.arc_segment(x=100, y=100, radius=50, start=0, end=360, arc=20, rotation=0)
# or
render_list.arcseg(x=100, y=100, radius=50, start=0, end=360, arc=20, rotation=0)

x¶

float

Horizontal position of the arc.

y¶

float

Vertical position of the arc.

radius¶

float

Radius of the arc.

start¶

float

Start angle of the arc, in degrees.

end¶

float

End angle of the arc, in degrees.

arc¶

float

Angle of the arc to draw, in degrees.

rotation¶

float

Rotation of the arc, in degrees.

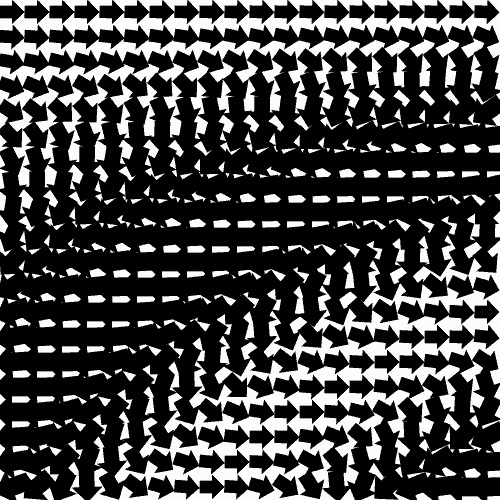

Arrow¶

from glc import Gif

with Gif("arrow_example.gif", color_count=4) as a:
    l = a.render_list
    n = 20
    w, h = a.w // n, a.h // n
    for x in range(w // 2, a.w, w):
        for y in range(h // 2, a.h, h):
            l.arrow(
                x=x,
                y=y,
                w=[w, w * 1.5],
                h=[h, h * 1.5],
                rotation=[0, 180],
                phase=((x + 300) * y) / (a.w * a.h)
            )

class glc.shapes.Arrow(*args, **kwargs)¶

Draws an arrow shape.

Create it using:

render_list.arrow(x=100, y=100, w=100, h=100, point_percent=0.5, shaft_percent=0.5, rotation=0.5)

x¶

float

Horizontal position of the center of the arrow.

y¶

float

Vertical position of the center of the arrow.

w¶

float

Width of the arrow.

h¶

float

Height of the arrow.

point_percent¶

float

How much the point of the arrow will take up from the width.

shaft_percent¶

float

How much the shaft of the arrow will take up from the width.

rotation¶

float

Angle of the arrow, in degrees.

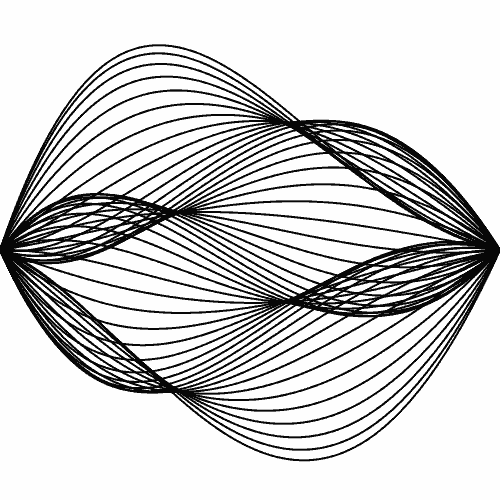

Bézier Curve¶

from glc import Gif

with Gif("bezier_curve_example.gif", color_count=4) as a:
    a.set_duration(2)
    l = a.render_list
    ys, s, h = 10, 10, 200
    for i in range(a.h // s):
        c = [ys + (i * s) - h, ys + (i * s) + h]
        l.bezier(
            x0=0, y0=a.h * 0.5,
            x1=a.w * 0.3, y1=c,
            x2=a.w * 0.6, y2=list(reversed(c)),
            x3=a.w, y3=a.h * 0.5,
            phase=(i * 2) / (a.h // s),
            line_width=2
        )

class glc.shapes.BezierCurve(*args, **kwargs)¶

Draws a standard bézier curve using four points.

Create it using:

render_list.bezier_curve(x0=50, y0=10, x1=200, y1=100, x2=0, y2=100, x3=150, y3=10, show_points=False)
# or
render_list.bezier(x0=50, y0=10, x1=200, y1=100, x2=0, y2=100, x3=150, y3=10, show_points=False)

x0¶

float

Horizontal position of the first point.

y0¶

float

Vertical position of the first point.

x1¶

float

Horizontal position of the second point.

y1¶

float

Vertical position of the second point.

x2¶

float

Horizontal position of the third point.

y2¶

float

Vertical position of the third point.

x3¶

float

Horizontal position of the fourth point.

y3¶

float

Vertical position of the fourth point.

show_points¶

bool

Whether to show the points used to draw the curve or not. Defaults to False.

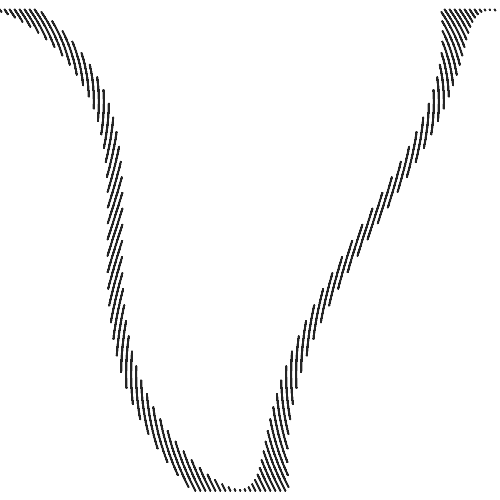

Bézier Segment¶

from glc import Gif
from glc.utils import lerp

with Gif("bezier_segment_example.gif", color_count=4) as a:
    a.set_duration(4)
    l = a.render_list
    start_x, start_y = -10, 10
    sw = 100
    s = 5
    end_y = a.h - start_y
    for i in range(a.w // s + 2):
        l.bezierseg(
            x0=start_x + (i * s), y0=start_y,
            x1=start_x + sw + (i * s), y1=lerp(0.3, start_y, end_y),
            x2=start_x - sw + (i * s), y2=lerp(0.6, start_y, end_y),
            x3=start_x + (i * s), y3=end_y,
            phase=i / (a.w // s),
            line_width=2
        )

class glc.shapes.BezierSegment(*args, **kwargs)¶

Draws a portion of a standard bézier curve using four points.

The drawn segment will animate from the start of the curve to the end of it during the animation (and back to the start if the loop attribute on the animation is True).

Create it using:

render_list.bezier_segment(x0=50, y0=10, x1=200, y1=100, x2=0, y2=100, x3=150, y3=10, percent=0.5, show_points=False)
# or
render_list.bezierseg(x0=50, y0=10, x1=200, y1=100, x2=0, y2=100, x3=150, y3=10, percent=0.5, show_points=False)

x0¶

float

Horizontal position of the first point.

y0¶

float

Vertical position of the first point.

x1¶

float

Horizontal position of the second point.

y1¶

float

Vertical position of the second point.

x2¶

float

Horizontal position of the third point.

y2¶

float

Vertical position of the third point.

x3¶

float

Horizontal position of the fourth point.

y3¶

float

Vertical position of the fourth point.

percent¶

float

How much of the bézier curve should be drawn.

show_points¶

bool

Whether to show the points used to draw the curve or not. Defaults to False.

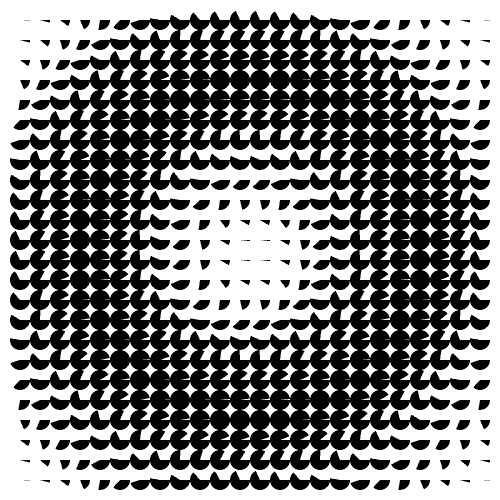

Circle¶

from math import sqrt
from glc import Gif

with Gif("circle_example.gif", color_count=4) as a:
    a.set_duration(2)
    l = a.render_list
    r = a.w // 50
    cx, cy = a.w * 0.5, a.h * 0.5
    for x in range(r * 2, a.w - r, r * 2):
        for y in range(r * 2, a.h - r, r * 2):
            dx = x - cx
            dy = y - cy
            dist = sqrt(dx * dx + dy * dy)
            l.circle(
                x=x, y=y,
                radius=r,
                phase=dist * 0.003,
                line_width=2,
                start=0, end=[0, 360],
                centered=True
            )

class glc.shapes.Circle(*args, **kwargs)¶

Draws a circle.

This can also draw an arc, if you use the start and end angle properties to do so.

Create it using:

render_list.circle(x=100, y=100, radius=50, start=0, end=360, centered=False, rotation=0, scale_x=1, scale_y=1)

x¶

float

Horizontal position of the circle.

y¶

float

Vertical position of the circle.

radius¶

float

Radius of the circle.

start¶

float

Start angle of the arc, in degrees.

end¶

float

End angle of the arc, in degrees.

rotation¶

float

Rotation of the circle, in degrees.

centered¶

bool

Whether to start drawing at the center of the circle or not. Defaults to False.

scale_x¶

float

Horizontal scale factor of the circle.

scale_y¶

float

Vertical scale factor of the circle.

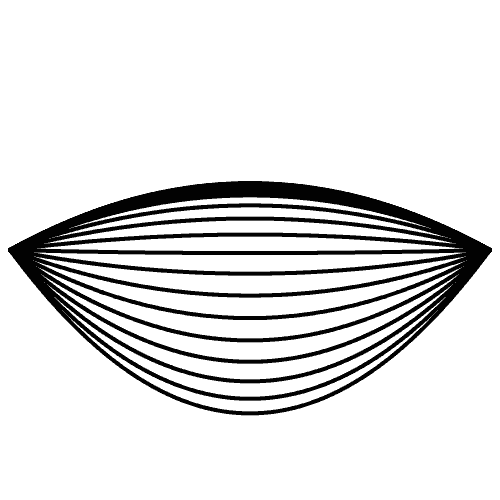

Curve¶

from glc import Gif
from glc.utils import lerp

with Gif("curve_example.gif", color_count=4) as a:
    a.set_duration(2)
    l = a.render_list
    wave = 100
    res = 20
    for y in range(res, a.h, res):
        l.curve(
            x0=10,
            y0=a.h * 0.5,
            x1=lerp(0.5, 10, a.h - 10),
            y1=[y + wave, y - wave],
            x2=lerp(1, 10, a.h - 10),
            y2=a.h * 0.5,
            line_width=4,
            phase=y / a.h
        )

class glc.shapes.Curve(*args, **kwargs)¶

Draws a standard quadratic bézier curve using three points.

Create it using:

render_list.curve(x0=20, y0=10, x1=100, y1=200, x2=180, y2=10, show_points=False)

x0¶

float

Horizontal position of the first point.

y0¶

float

Vertical position of the first point.

x1¶

float

Horizontal position of the second point.

y1¶

float

Vertical position of the second point.

x2¶

float

Horizontal position of the third point.

y2¶

float

Vertical position of the third point.

show_points¶

bool

Whether to show the points used to draw the curve or not. Defaults to False.

Curved Path¶

TODO: add example here

class glc.shapes.CurvePath(*args, **kwargs)¶

Curved Segment¶

TODO: add example here

class glc.shapes.CurveSegment(*args, **kwargs)¶

Draws a portion of a standard quadratic bézier curve using three points.

The drawn segment will animate from the start of the curve to the end of it during the animation (and back to the start if the loop attribute on the animation is True).

Create it using:

render_list.curve_segment(x0=20, y0=20, x1=100, y1=200, x2=180, y2=20, percent=0.5, show_points=False)
# or
render_list.curveseg(x0=20, y0=20, x1=100, y1=200, x2=180, y2=20, percent=0.5, show_points=False)

x0¶

float

Horizontal position of the first point.

y0¶

float

Vertical position of the first point.

x1¶

float

Horizontal position of the second point.

y1¶

float

Vertical position of the second point.

x2¶

float

Horizontal position of the third point.

y2¶

float

Vertical position of the third point.

percent¶

float

How much of the curve should be drawn.

show_points¶

bool

Whether to show the points used to draw the curve or not. Defaults to False.

Gear¶

TODO: add example here

class glc.shapes.Gear(*args, **kwargs)¶

Draws a toothed gear.

Create it using:

render_list.gear(x=100, y=100, radius=50, hub=10, rotation=0, teeth=10)

x¶

float

Horizontal position of the gear.

y¶

float

Vertical position of the gear.

radius¶

float

Outer radius of the gear.

hub¶

float

Radius of the hub of the gear (inner radius).

teeth¶

int

Number of teeth on the gear.

tooth_height¶

float

Height of the gear’s teeth.

tooth_angle¶

float

Angle of the sides of the teeth. This should be in the [0-1] range.

rotation¶

float

Rotation of the gear, in degrees.

scale_x¶

float

Horizontal scale factor of the gear.

scale_y¶

float

Vertical scale factor of the gear.

Gradient Pie¶

TODO: add example here

class glc.shapes.GradientPie(*args, **kwargs)¶

Grid¶

TODO: add example here

class glc.shapes.Grid(*args, **kwargs)¶

Draws a grid.

Create it using:

render_list.grid(x=0, y=0, w=100, h=100, size=20)

x¶

float

Horizontal position of the grid.

y¶

float

Vertical position of the grid.

w¶

float

Width of the grid.

h¶

float

Height of the grid.

size¶

float

Size of a grid cell.

Heart¶

TODO: add example here

class glc.shapes.Heart(*args, **kwargs)¶

Draws a heart.

Create it using:

render_list.heart(x=100, y=100, w=50, h=50, scale_x=1, scale_y=1, rotation=0)

x¶

float

Horizontal position of the heart.

y¶

float

Vertical position of the heart.

w¶

float

Width of the heart.

h¶

float

Height of the heart.

scale_x¶

float

Horizontal scale factor of the heart.

scale_y¶

float

Vertical scale factor of the heart.

rotation¶

float

Angle of the heart, in degrees.

Image¶

TODO: add example here

class glc.shapes.Image(*args, **kwargs)¶

Draws an image.

This uses the imageio library for loading images. See their docs for more info on what you can load.

Create it using:

render_list.image(img="path/to/image.png", x=100, y=100)
# or
render_list.img(img="path/to/image.png", x=100, y=100)

# you can pass an emoji character as the path
# which will load an emoji from your emoji_path
render_list.img(img="👌", x=100, y=100)

# you can pass a list of images
render_list.img(img=["1.png", "2.png", "3.png"], x=100, y=100)

# or a gif
render_list.img(img="numbers.gif", x=100, y=100)

# you can tint the image
render_list.img(img="image.png", x=100, y=100, tint=glc.Color("0xffff0000"))

# you can also control whether the image swapping should be eased
# of course this only has any effect if it's a multi-image container, such as gifs
render_list.img(img="image.gif", x=100, y=100, img_ease=False)
render_list.img(img="image.gif", x=100, y=100, img_ease=False, img_speed=2)

# the mode attribute controls how wrapping around happens
# clamp stops at the final frame
# wrap moves back to the first frame
render_list.img(img="image.gif", x=100, y=100, img_ease=False, mode="clamp")
render_list.img(img="image.gif", x=100, y=100, img_ease=False, mode="wrap")

img¶: The image or images to use. Can be a file path, http address, file object, raw bytes, emoji (unicode codepoint), or a list with any of those.

x¶

float

Horizontal position of the image.

y¶

float

Vertical position of the image.

w¶

float

Width of the image. If no value is specified, the original image width is used.

h¶

float

Height of the image. If no value is specified, the original image height is used.

scale_x¶

float

Horizontal scale factor of the image.

scale_y¶

float

Vertical scale factor of the image.

centered¶

bool

Whether the image should be drawn with (x, y) being at its center or at the top-left corner. Defaults to True.

rotation¶

float

Angle of the image, in degrees.

alpha¶

float

Opacity of the image.

tint¶

glc.Color

Color to tint the image with.

tint_op¶

int [Cairo constant]

Operator to use when tinting. See http://cairographics.org/documentation/pycairo/3/reference/constants.html#cairo-operator Defaults to cairo.OPERATOR_HSL_COLOR.

mode¶

string

The image swapping wrapping mode. Can only be of the following:

clamp
wrap

img_ease¶

bool

Whether the image swapping should be eased with the rest of the animation or not. Defaults to True.

img_speed¶

float

Image swapping speed multiplier.

Isometric Box¶

TODO: add example here

class glc.shapes.IsoBox(*args, **kwargs)¶

Draws an isometric box.

Create it using:

render_list.isobox(
    x=100, y=100,
    size=60, h=40,
    color_left=glc.Color("0xff999999"),
    color_right=glc.Color("0xffcccccc"),
    color_top=glc.Color("0xffeeeeee")
)

x¶

float

Horizontal position of the isometric box.

y¶

float

Vertical position of the isometric box.

size¶

float

Size of the isometric box.

h¶

float

Height of the isometric box.

color_left¶

glc.Color

Color of the left side of the isometric box.

color_right¶

glc.Color

Color of the right side of the isometric box.

color_top¶

glc.Color

Color of the top of the isometric box.

scale_x¶

float

Horizontal scale factor of the isometric box.

scale_y¶

float

Vertical scale factor of the isometric box.

Isometric Tube¶

TODO: add example here

class glc.shapes.IsoTube(*args, **kwargs)¶

Draws an isometric tube.

Create it using:

render_list.isotube(
    x=100, y=100,
    radius=60, h=40,
    color_left=glc.Color("0xff999999"),
    color_right=glc.Color("0xffcccccc"),
    color_top=glc.Color("0xffeeeeee")
)

x¶

float

Horizontal position of the isometric tube.

y¶

float

Vertical position of the isometric tube.

radius¶

float

Radius of the isometric tube.

h¶

float

Height of the isometric tube.

color_left¶

glc.Color

Color of the left side of the isometric tube.

color_right¶

glc.Color

Color of the right side of the isometric tube.

color_top¶

glc.Color

Color of the top of the isometric tube.

scale_x¶

float

Horizontal scale factor of the isometric tube.

scale_y¶

float

Vertical scale factor of the isometric tube.

Line¶

TODO: add example here

class glc.shapes.Line(*args, **kwargs)¶

Draws a line between two points.

Create it using:

render_list.line(x0=0, y0=0, x1=100, y1=100)

x0¶

float

Horizontal position of the first point.

y0¶

float

Vertical position of the first point.

x1¶

float

Horizontal position of the second point.

y1¶

float

Vertical position of the second point.

Oval¶

TODO: add example here

class glc.shapes.Oval(*args, **kwargs)¶

Draws an oval.

This can also draw an ovoidal arc, if you use the start and end angle properties to do so.

Create it using:

render_list.oval(x=100, y=100, rx=100, ry=50)

x¶

float

Horizontal position of the oval.

y¶

float

Vertical position of the oval.

rx¶

float

Horizontal radius of the oval.

ry¶

float

Vertical radius of the oval.

start¶

float

Start angle of the arc, in degrees.

end¶

float

End angle of the arc, in degrees.

centered¶

bool

Whether the oval should be centered on the (x, y) point or not. Defaults to False.

rotation¶

float

Angle of the oval, in degrees.

Path¶

TODO: add example here

class glc.shapes.Path(*args, **kwargs)¶

Draws lines that pass between the specified points.

Create it using:

render_list.path(path=[0, 0, 100, 100, -100, 100, -50, 50, 0, 50])

path¶

list of floats

Flat list of points, like this: [0, 0, 100, 100] (two points). Can also be a nested list, in which case the points will be interpolated. If the two lists are not the same size, excess points will be ignored.

start_percent¶

float

Where drawing of the path will start at.

end_percent¶

float

Where drawing of the path will end at.

show_points¶

bool

Whether to show the points used to draw the path or not. Defaults to False.

Polygon¶

TODO: add example here

class glc.shapes.Poly(*args, **kwargs)¶

Draws a polygon.

Create it using:

render_list.poly(x=100, y=100, rotation=0, radius=50, sides=5)

x¶

float

Horizontal position of the polygon.

y¶

float

Vertical position of the polygon.

radius¶

float

Radius of the polygon.

sides¶

int

Number of sides of the polygon.

rotation¶

float

Angle of the polygon, in degrees.

Ray¶

TODO: add example here

class glc.shapes.Ray(*args, **kwargs)¶

Draws a ray.

This does the same thing as glc.shapes.Line, but the line is specified using a starting point and an angle + length, and not explicit points.

Create it using:

render_list.ray(x=100, y=100, angle=0, length=100)

x¶

float

Horizontal position of the ray.

y¶

float

Vertical position of the ray.

angle¶

float

Angle of the ray, in degrees.

length¶

float

Length of the ray.

Ray Segment¶

TODO: add example here

class glc.shapes.RaySegment(*args, **kwargs)¶

Draws part of a ray.

This does the same thing as glc.shapes.Segment, but the line is specified using a starting point and an angle + length, and not explicit points.

Create it using:

render_list.ray_segment(x=100, y=100, angle=0, length=100, segment_length=50)
# or
render_list.rayseg(x=100, y=100, angle=0, length=100, segment_length=50)

x¶

float

Horizontal position of the ray.

y¶

float

Vertical position of the ray.

length¶

float

Length of the ray.

angle¶

float

Angle of the ray.

segment_length¶

float

Portion of the ray that will be drawn.

Rectangle¶

TODO: add example here

class glc.shapes.Rect(*args, **kwargs)¶

Draws a rectangle.

Create it using:

render_list.rect(x=100, y=100, w=100, h=100)

x¶

float

Horizontal position of the rectangle.

y¶

float

Vertical position of the rectangle.

w¶

float

Width of the rectangle.

h¶

float

Height of the rectangle.

rotation¶

float

Angle of the rectangle, in degrees.

centered¶

bool

Whether the rectangle should be drawn from the center or the top left corner. Defaults to True.

scale_x¶

float

Horizontal scale factor of the rectangle.

scale_y¶

float

Vertical scale factor of the rectangle.

Round Rectangle¶

TODO: add example here

class glc.shapes.RoundRect(*args, **kwargs)¶

Draws a rounded rectangle.

You can either specify an specific radius for each corner, or just an overall radius for all of them.

If a radius for some corner is not specified, it falls back to the overall radius.

Create it using:

render_list.round_rect(x=100, y=100, w=100, h=100, radius=10)

x¶

float

Horizontal position of the rectangle.

y¶

float

Vertical position of the rectangle.

w¶

float

Width of the rectangle.

h¶

float

Height of the rectangle.

radius¶

float

Overall radius of the corners.

bottom_left¶

float

Radius of the bottom left corner.

bottom_right¶

float

Radius of the bottom right corner.

top_left¶

float

Radius of the bottom left corner.

top_right¶

float

Radius of the bottom right corner.

rotation¶

float

Angle of the rectangle, in degrees.

centered¶

bool

Whether the rectangle should be drawn from the center or the top left corner. Defaults to True.

scale_x¶

float

Horizontal scale factor of the rectangle.

scale_y¶

float

Vertical scale factor of the rectangle.

Segment¶

TODO: add example here

class glc.shapes.Segment(*args, **kwargs)¶

Draws a portion of a line.

The drawn segment will animate from the start of the line to the end of it during the animation (and back to the start if the loop attribute on the animation is True).

Create it using:

render_list.segment(x0=0, y0=0, x1=100, y1=100, length=50, show_points=False)

x0¶

float

Horizontal position of the first point.

y0¶

float

Vertical position of the first point.

x1¶

float

Horizontal position of the second point.

y1¶

float

Vertical position of the second point.

length¶

float

Length of the segment drawn.

show_points¶

bool

Whether to show the points used to draw the curve or not. Defaults to False.

Spiral¶

TODO: add example here

class glc.shapes.Spiral(*args, **kwargs)¶

Draws a spiral.

Create it using:

render_list.spiral(x=100, y=100, turns=6, inner_radius=10, outer_radius=100)

x¶

float

Horizontal position of the spiral.

y¶

float

Vertical position of the spiral.

inner_radius¶

float

Inner radius of the spiral.

outer_radius¶

float

Outer radius of the spiral.

turns¶

float

Number of turns in the spiral (negative values make it turn in the other direction).

res¶

float

The spiral is drawn as a series of tiny line segments. This is the angle of each of those segments, in degrees.

rotation¶

float

Angle of the spiral, in degrees).

scale_x¶

float

Horizontal scale factor of the spiral.

scale_y¶

float

Vertical scale factor of the spiral.

Splat¶

TODO: add example here

class glc.shapes.Splat(*args, **kwargs)¶

Star¶

TODO: add example here

class glc.shapes.Star(*args, **kwargs)¶

Draws a star.

Create it using:

render_list.star(x=100, y=100, inner_radius=25, outer_radius=50, points=5)

x¶

float

Horizontal position of the star.

y¶

float

Vertical position of the star.

inner_radius¶

float

Inner radius of the star.

outer_radius¶

float

Outer radius of the star.

points¶

int

Number of points in the star.

rotation¶

float

Angle of the star, in degrees.

scale_x¶

float

Horizontal scale factor of the star.

scale_y¶

float

Vertical scale factor of the star.

Text¶

TODO: add example here

class glc.shapes.Text(*args, **kwargs)¶
